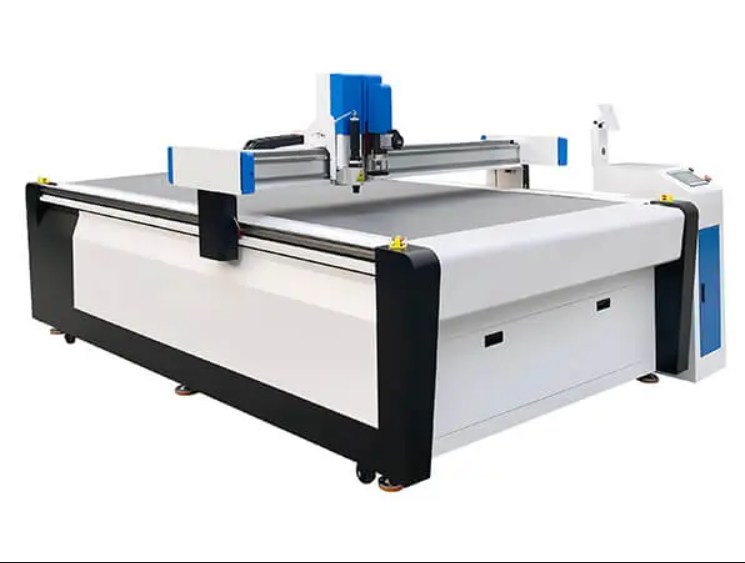

Application of gasket cutting machine

There are many machines can cut gasket. Some are small manual type, some are big die cutter. They usually need you to prepare the mold. Making molds is time-consuming, labor-intensive, and inflexible. Changzhou CNC gasket knife cutting machine can cut various thicknesses of non-metallic gaskets, no need to make molds and you can cut any size, any shape of gaskets.

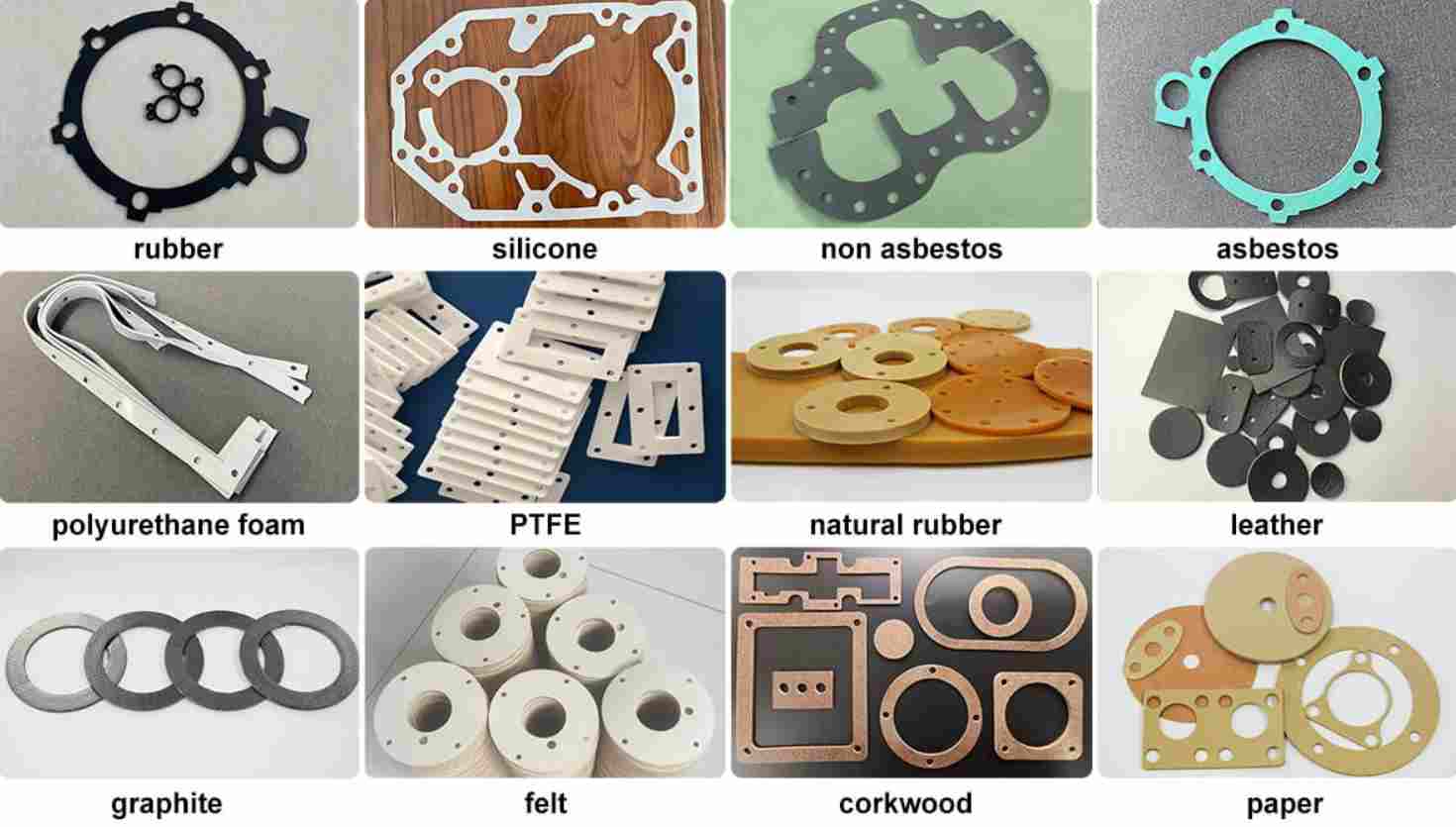

Non metallic gaskets such as rubber gaskets, silicone gaskets, asbestos gaskets, asbestos rubber gaskets, flexible graphite gaskets, PTFE gaskets, soft PVC gaskets, PET, asbestos free gaskets, teflon gasket, leather gaskets, paper gaskets, etc. They all can be cut by the gasket knife cutting machine.

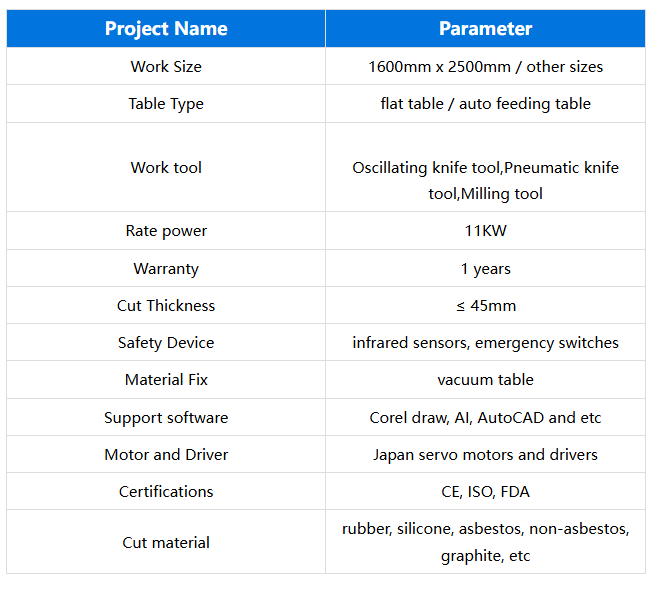

Parameters of gasket cutting machine

Safety devices

1. Double sided infrared automatic sensing device

Ensures that the machine protects the operator during high speed movement

2. Four corners emergency buttons

Protective effect, in case of mis cutting, the four corner emergency stop switch can be used to force shutdown, to reduce losses.

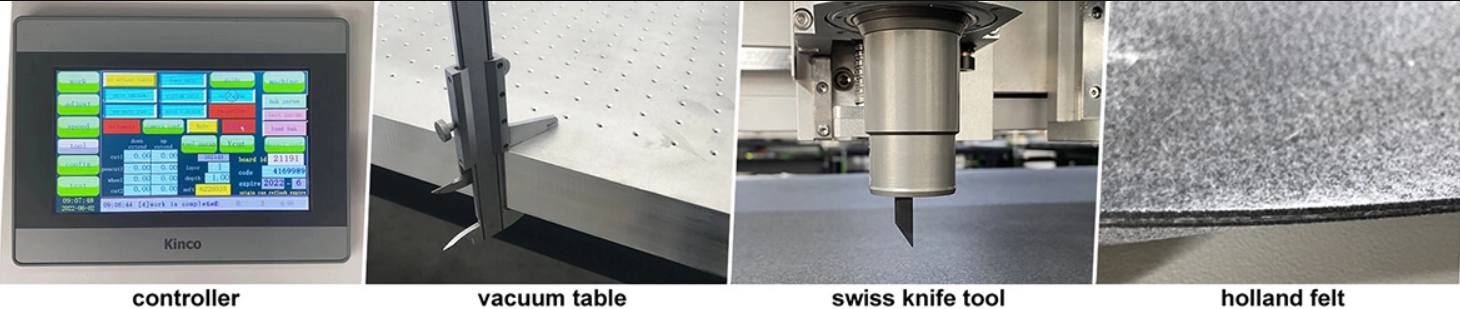

Advantages of gasket cutting machine

1. Changzhou rubber gasket knife cutting machine uses seamless steel welded bed. Good stability, not easy to deform after long term use.

2. Taiwan square rail and helical rack transmission, high precision make sure the rubber asbestos gasket cutting machine.

3. Multiple tool seats can replace different cutting tools when you cutting different materials. Such as when you cut thin rubber, you can use the oscillating knife while cutting thick rubber you can change to pneumatic knife.

4. High power vacuum pump works with the vacuum table. big suction and can fix the material very stable. The rubber or silicone, asbestos will not move when cutting, improve the cutting precision.

5. Computer graphics, accurate size, flexible cutting size. It is very suitable for customers of various types of small batch customization, make your delivery time of gaskets is fast.

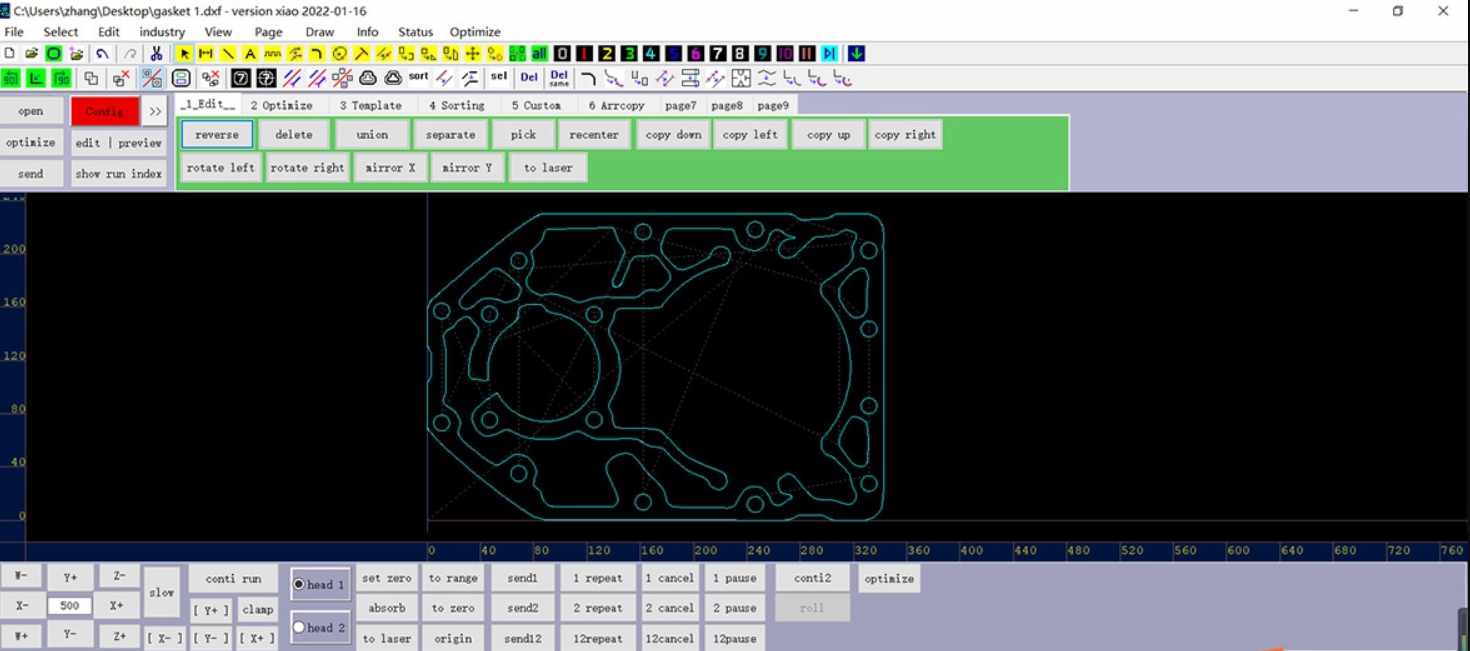

Software of gasket cutting machine

1. Professional motion control system software.

2. The software has strong compatibility. Support AutoCAD, AI, Corel draw, Inkscape and other design software files.
