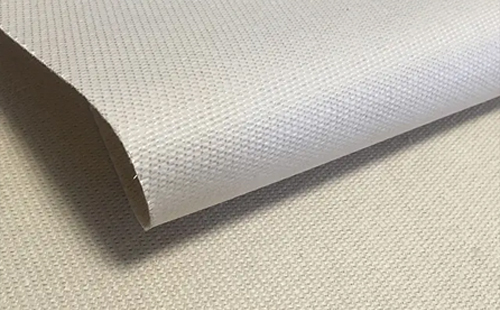

Woven fabrics are mostly woven with PP and PE plastic flat filaments, featuring wear resistance, high tensile strength, light weight, waterproof performance, corrosion resistance and tear resistance. Common types include plain woven fabric, coated woven fabric, container ton bag fabric, tarpaulin fabric and flood control sandbag fabric, widely used in logistics packaging, industrial and agricultural container loading, warehouse covering, flood prevention engineering and other fields.
As a plastic woven flexible material, woven fabric is prone to melting and wire drawing under high temperature, and the warp and weft threads are easy to shift and loose under stretching force. Manual blanking for large-size fabric pieces is low in efficiency and inaccurate in dimension. Traditional processing methods cannot balance finished product quality, production efficiency and material utilization rate perfectly. The CNC vibration knife cold cutting machine adopts high-frequency physical cutting technology with stable cutting force and temperature control, thoroughly solving industry pain points including molten edges, loose threads and difficult special-shaped processing, becoming the mainstream automatic blanking equipment for the woven fabric packaging and tarpaulin industry.
Core Pain Points of Traditional Woven Fabric Cutting Technology
With dual characteristics of plastic thermal fusibility and textile woven structure, woven fabric is extremely sensitive to cutting temperature and stress mode. All traditional processing methods have obvious adaptation defects that restrict factory production benefits:
1. Manual Cutting: Low Efficiency, Uncontrollable Precision and Quality
Manual cutting relies on utility knives, straight rulers and templates for blanking. Large-size ton bag and tarpaulin cutting requires multiple workers to spread and pull materials, resulting in high labor cost and low productivity. Uneven manual cutting force leads to large dimensional deviation of cut pieces. Special-shaped outlines and hole positions cannot be standardized. The stretching force during cutting easily causes warp and weft filament displacement and edge loose threads, resulting in inaccurate stitching and splicing and high rework rate. In addition, manual layout causes low material utilization rate and serious waste of expensive woven fabric raw materials.
2. Laser Cutting: Thermal Melting Edge with Environmental and Performance Risks
Laser cutting is a typical thermal processing technology. Plastic flat filaments melt rapidly under high temperature, causing hard edges, sticky sides and wire drawing on cutting sections, which damage the original tensile strength of woven fabrics and easily lead to cracking and thread shedding during subsequent stitching and heat sealing. The cutting process produces plastic flue gas and peculiar smell, requiring supporting waste gas treatment equipment and increasing additional environmental protection costs. For food-grade and medical-grade packaging woven fabrics with strict edge cleanliness requirements, laser cutting cannot meet official delivery standards at all.
3. Die Stamping: Extrusion Deformation, High Mold Cost and Poor Flexibility
Die stamping separates fabrics through high-pressure punching. Strong extrusion force causes filament displacement and coating peeling on the fabric surface, leaving permanent indentations that damage the appearance and waterproof performance of finished products. Multi-layer stamping easily causes interlayer dislocation and poor dimensional consistency. Custom molds for large-size ton bags and special-shaped tarpaulins are expensive with long production cycles. Frequent style replacement requires new molds, resulting in extremely high average cost for small-batch customized orders, forcing many manufacturers to refuse flexible customized orders.
Core Advantages of Vibration Knife Cutting Machine for Woven Fabric Processing
Aiming at the physical characteristics of woven fabrics and flexible composite materials, the fully automatic intelligent vibration knife cutting system completely eliminates the defects of traditional craftsmanship, helping processing factories achieve significant cost reduction and efficiency improvement:
1. Automatic Coil Feeding and Unloading, Eliminating Manual Handling
Equipped with a full-automatic coil feeding and unloading device, the machine realizes one-key automatic coil feeding, deviation correction and material collection. No manual cooperation is needed for handling large-volume woven fabric coils. A single worker can supervise the entire production line independently, greatly reducing labor intensity and saving manual handling costs.
2. Synchronous Multi-Layer Cutting, Exponential Productivity Growth
The equipment supports stacked multi-layer cutting. According to fabric thickness, multiple layers of woven fabrics can be cut at one time. Cooperated with high-frequency intelligent vibration knives, it delivers stable cutting and fast running speed. The daily output of a single machine is equivalent to the workload of more than a dozen traditional workers, greatly boosting mass production capacity.
3. Powerful Labor Replacement, Solving Labor Shortage Problems
One intelligent cutting machine can replace 4 to 6 skilled cutting workers. With only one-time equipment investment, manufacturers can recover costs quickly through saved labor salaries in the long run, realizing efficient "machine replacement" and solving the industry's perennial labor shortage problem.
4. Pure Physical Cold Cutting, Zero Thermal Damage
Different from laser cutting that causes yellowed edges, burnt marks and melting adhesion, the vibration knife adopts high-frequency physical vibration cutting. The whole process is completed at normal temperature with no thermal damage, no peculiar smell, no molten edges and no loose threads. The original tensile and waterproof properties of woven fabrics are fully retained, perfectly meeting high-standard finished product requirements.
5. Intelligent Nesting System, 5%+ Higher Material Utilization
Built-in professional automatic nesting software adopts AI algorithm to realize gapless and compact layout according to different pattern designs. It maximizes the utilization rate of raw materials, avoids unnecessary waste, and effectively reduces the material cost of mass production orders.
6. Flexible Special-Shaped Cutting for Diversified Custom Orders
The system supports one-click import of CAD, CorelDRAW and other design files. It can realize one-time precise forming of regular rectangles, circles, as well as complex arcs, hole positions and various special-shaped patterns, fully adapting to personalized and diversified customized order demands in the woven fabric processing industry.
Customized Advantages of Professional Woven Fabric Cutting Equipment
Focusing on flexible material processing equipment manufacturing, our woven fabric cutting machine is specially optimized for the material characteristics and application scenarios of PP/PE woven fabrics, different from general-purpose cutting equipment, with strong customized adaptability:
1. Customizable Cutting Table Width and Size
We provide customized ultra-wide and ultra-long machine tables (2m, 3m, 4m and larger sizes) for different woven fabric coil specifications. It perfectly matches seamless processing of large-size coil materials, avoiding secondary cutting troubles caused by limited table width and improving processing integrity and efficiency.
2. Custom Feeding and Rewinding System
According to factory space and automatic production demands, we customize pneumatic deviation-correcting feeding racks, high-power automatic rewinding rollers and multi-axis synchronous unwinding devices. For super-heavy and thick ton bag fabrics and geotextiles, heavy-duty automatic loading and unloading systems are equipped to completely liberate manual labor.
3. Combined Custom Tool Head Configuration
Woven fabric processing usually requires synchronous cutting, punching and marking. We customize composite multi-functional tool heads, freely combining intelligent vibration knives, pneumatic round knives for high-speed linear cutting, punching drills and V-groove cutters. It realizes one-process completion of multiple working procedures, eliminating tedious secondary processing.
4. Deep Integration of Software System and Nesting Algorithm
The equipment software can be connected with customers' existing ERP and MES systems. Exclusive intelligent nesting algorithms can be customized according to industry characteristics such as three-dimensional cutting of ton bags and splicing of tent tarpaulins, maximizing material utilization and economic benefits.
5. Optimized Configuration for Multi-Layer Cutting
Aiming at thin packaging woven fabrics and ordinary bag fabrics, we optimize the vacuum adsorption system and tool path configuration to ensure stable multi-layer stacked cutting with accurate interlayer alignment. It further improves mass production efficiency and guarantees stable delivery of large-batch orders.
6. Full-Cycle After-Sales Support
We provide free sample cutting service for customers to verify cutting effect before cooperation. Our professional team provides on-site equipment installation, commissioning and one-on-one operator training after delivery. We offer rapid response to daily technical problems, with spare parts supplied locally and free long-term software upgrades to ensure stable and long-term operation of the production line.
Conclusion
The core difficulties of woven fabric processing include avoiding high-temperature molten edges and loose warp/weft threads, realizing precise large-size special-shaped cutting, and reducing labor and material loss. Traditional manual, laser and die stamping processes either damage material performance, or feature high production cost and poor order flexibility, unable to adapt to the current customized and large-scale processing trend of packaging and tarpaulin products.
The CNC vibration knife cold cutting machine integrates normal-temperature non-damage cutting, no loose thread & no molten edge performance, mold-free flexible production and labor-saving & material-saving advantages. It solves all kinds of woven fabric processing pain points in one stop, capable of efficiently producing standard cut pieces and quickly completing customized processing of special-shaped ton bags and tarpaulin components. It is the preferred automatic blanking solution for the modern woven fabric processing industry.
If you have cutting demands for woven fabrics, ton bag fabrics and tarpaulins, welcome to contact us for sample testing and customized equipment solutions and quotations.
