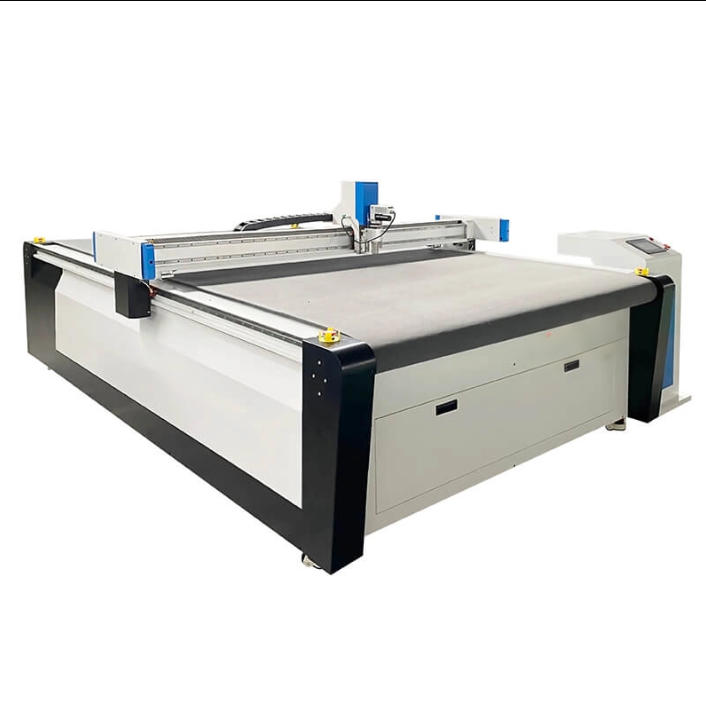

The gasket cutting machine can cut asbestos, graphite, rubber, silicone, non-asbestos, oil paper, and other sealing materials.

Gasket making machine only needs to import CAD drawings to cut out the designed graphics, which is very suitable for the production of custom gaskets.

1. Gasket Cutting Machine Application

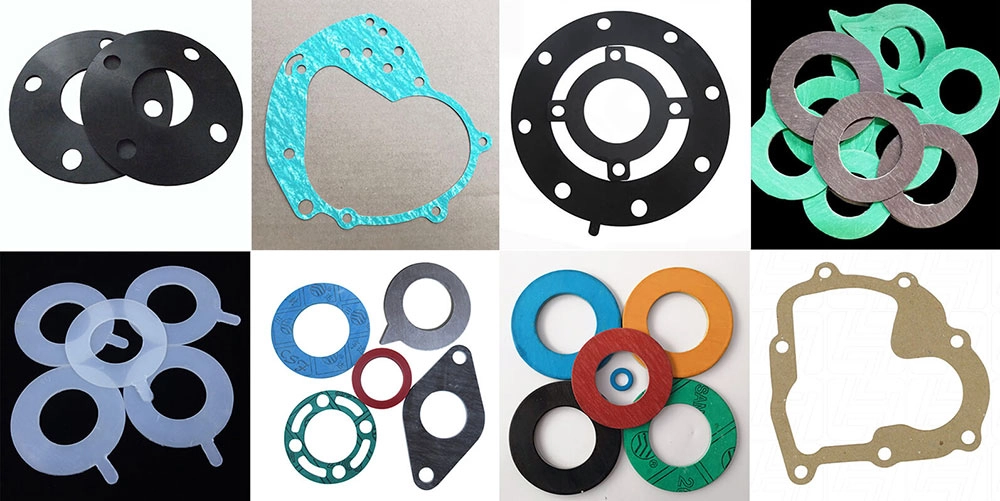

The gasket cutting machines can cut different gaskets like asbestos, rubber, and silicon gasket.

It also can cut leather, fabric, textile, cardboard, plastic box, fiberglass, sticker, film, foam board, rubber, cloth, gasket, garment cloth, footwear, bags, nonwoven fabrics, seat cover, carpets, rugs, sponges, PU, EVA, XPE, PVC, PP, PE, PTFE, ETFE, and composites.

The Tools and Functions of Oscillating Knife Cutting Machine.

1. Oscillating knife head

Gasket CNC cutting machine works with knife blades. It works fast, with high precision and no burn or smell.

2. Creasing wheel

A set of creasing wheels with different sizes can make good fold lines on cardboard.

3. degree cutting knife

This is special for making V grooves on honeycomb board, gray board and etc.

4. Milling knife

This is specialized for acrylic and thin wood material cutting.

5. CCD camera

Professional for positioning for print materials. Automatic and precise.

2. Gasket Making Machine Description

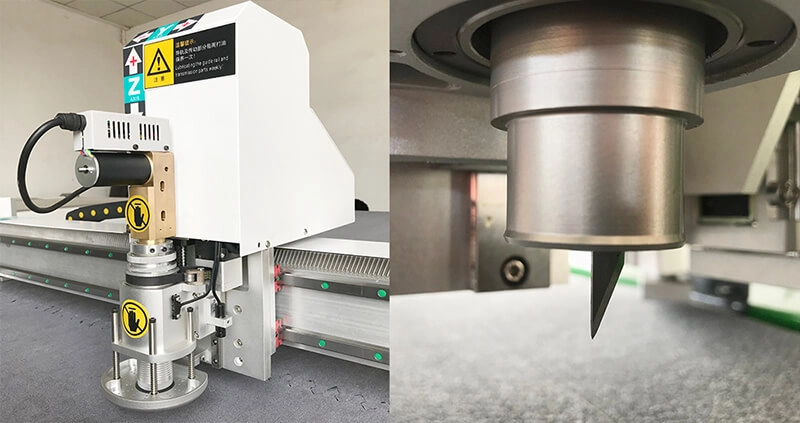

Knife Digital Cutting Head

The gasket cutting machine uses Switzerland high frequency vibration knife cutting tech. It can cut different gaskets like rubber, asbestos, silicon and etc.

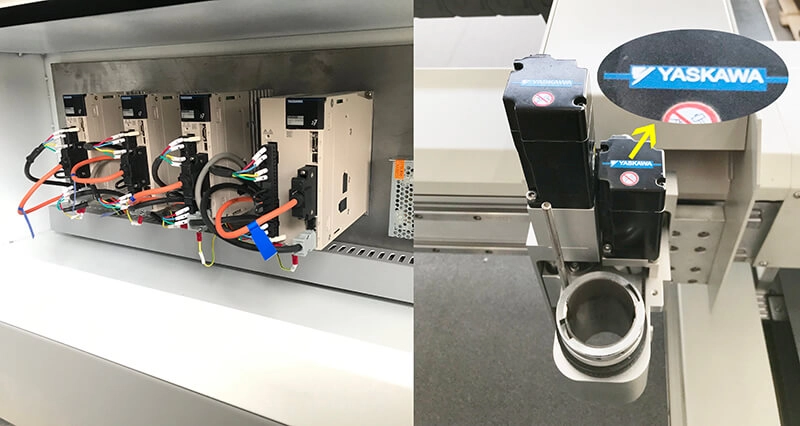

Servo Motors and Drivers

The silicon cutting machine uses Japan YASKAWA or Panasonic servo motors and drivers. Ensures the machine has high precision and high work speed, a long lifetime.

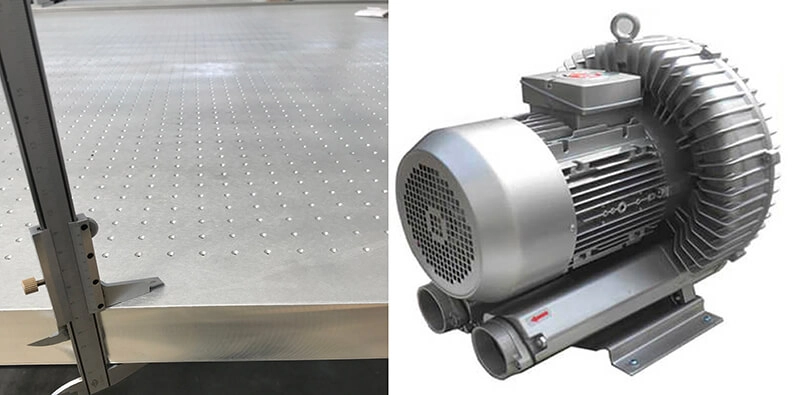

Vacuum table

The machine table is the vacuum table, vacuum pump offers high power air pressure to fix the material firmly. Make sure the material won't move during cutting.

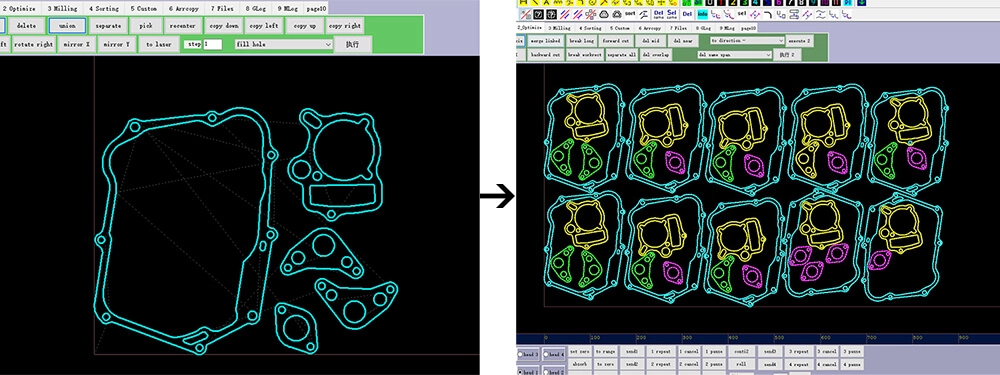

Nesting Software

Saves more than 15% materials.

3. Machine Features

1. Gasket cutting machine can replace the manual work. All the process is digital work. One hour of washer cutting machine work equals 5 hours of manual work.

2. Gasket making machine has nesting software. You can conduct the nest with our system. Try multi layout until getting the best nest solution.

3. Rubber gasket cutting machine uses Japan YASKAWA servo motors and drivers. With Taiwan HIWIN linear guide. Makes sure the machine has perfect precision.

4. Washer cutting machine cuts gasket by computer program and software. Reduces the error rate caused by personal work.

5. Gasket cutting machine only needs the gasket designs. No need to make the cutting mold. It's very good for customized products.

6. The design, input, and pattern change are easy. Machine operators will enjoy a cleaner, safer work environment.
