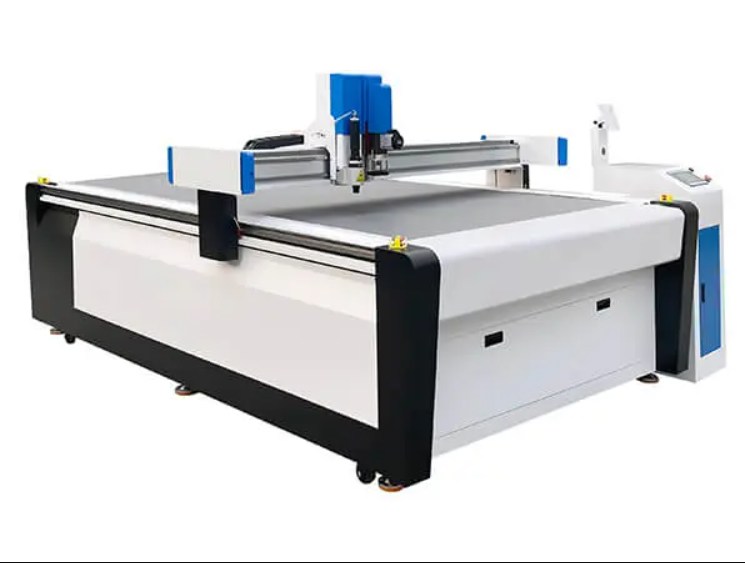

The carton cutting machine can cut corrugated cardboard, honeycomb cardboard, gray cardboard, cardboard, paperboard, etc. It can make cartons, packaging boxes, handicrafts, toys, and so on.

1. Cardboard Cutter Machine Description

1. Carton box cutting machine has multi cut tool, carton box die cutting machine is able to do cutting, press folding, and degree cutting work.

2. Cardboard digital cutter has a group of creasing wheels to make fold lines on corrugated board, then the cardboard is easy to fold.

3. Carton cutting machine has different shapes and lengths of cutting blades for cutting different workpieces.

4. Carton box die cutting machine has a powerful vacuum table. high vacuum pressure can fix the cardboard firmly in the cut process.

5. Cardboard digital cutter has an accurate position through a laser registration device.

6. Digital die cutter is compatible with different software such as AI, Corel Draw, Auto CAD, etc.

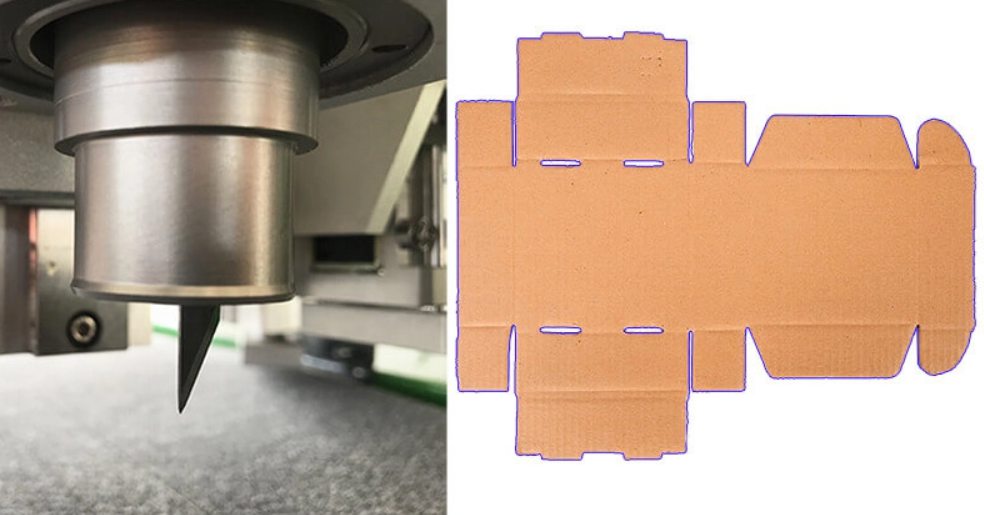

Knife cutting head: The knife cutting head is suited for cutting softer, medium density cardboard. Like corrugated cardboard, carton box board, and PP cardboard.

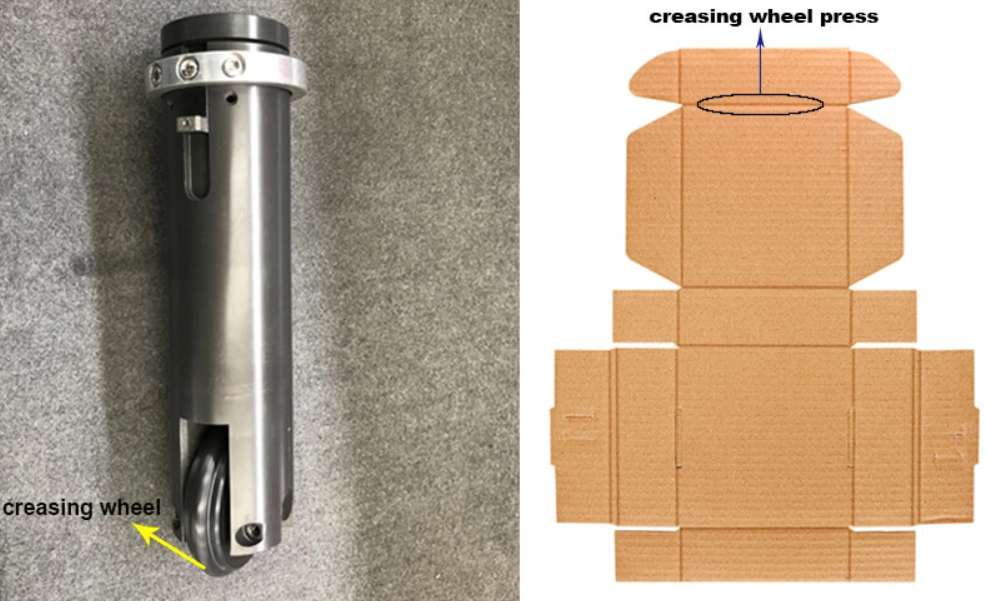

Creasing Wheel: Carton cutting machine has a group of crease wheels for folding cartons, corrugated plastic, and many other applications.

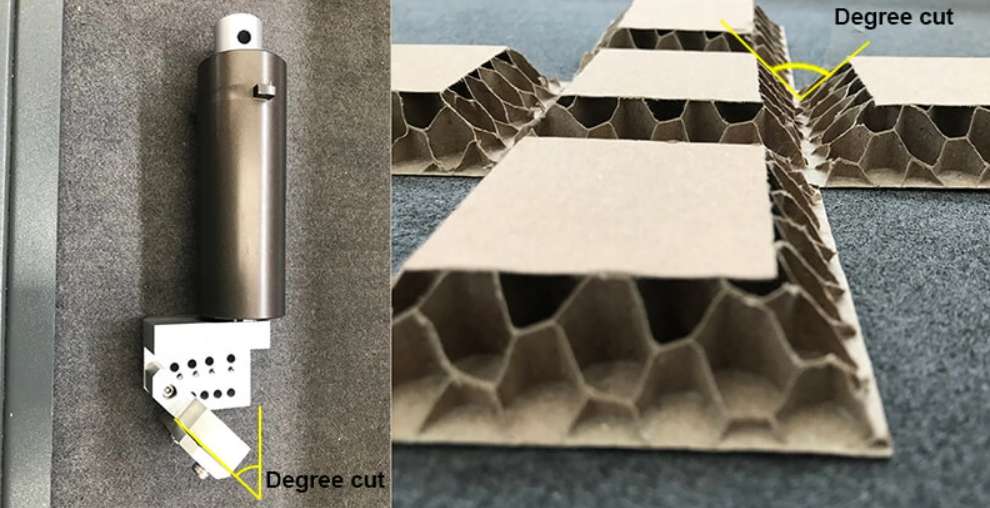

V CUT: The tool can be set for cutting at 5 different angles  (0°, 15°, 22.5°, 30°, 45°).

2. Machine Application

Cutting function: carton cutting machine can cut different workpieces such as corrugated paper, cardboard, offset paper, greyboard, rubber, honeycomb board, PP, PE, PVC, gasket, leather, carpet, textile, fabric, and car mat.

Folding function: carton box cutting machine can fold corrugated paper, card paper, and offset board into perfect folding lines.

The function of dotted line: digital die cutter is used to fold them after half cutting corrugated paper and grey card paper, and to cut dotted lines.

Draw function with a marker pen: cardboard digital cutter can write text on corrugated board, foam, PVC, adhesive vinyl, leather, rubber, fabrics, high intensity reflective films, paper, cardboard, etc.

Punching function: carton box die cutting machine can punch holes on leather, cardboard, PVC, rubber, carpet, mat, etc.

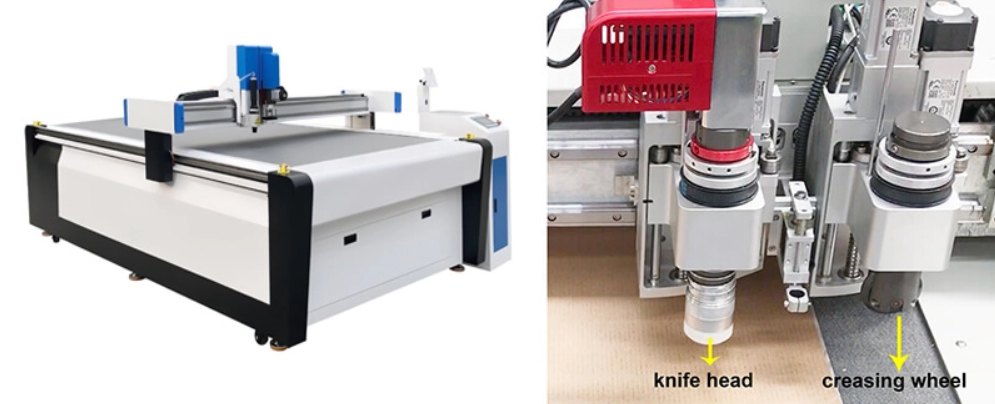

1. The carton cutting machine can cut and fold cardboard at high speed. Carton box cutting machine has two independent work heads and the work tools are interchangeable.

2. Table of this carton box die cutting machine is a vacuum table. This vacuum table endows the cutting machine has a stronger suction capacity and can fix the cardboard firmly in the work process.

3. Automatic tool set system makes tool replacement more convenient. After replacing the knife tools, you just need to press the button and the depth of the knife tool will be set automatically. In this way, damage to the cutting table caused by manual operation errors will be avoided.
