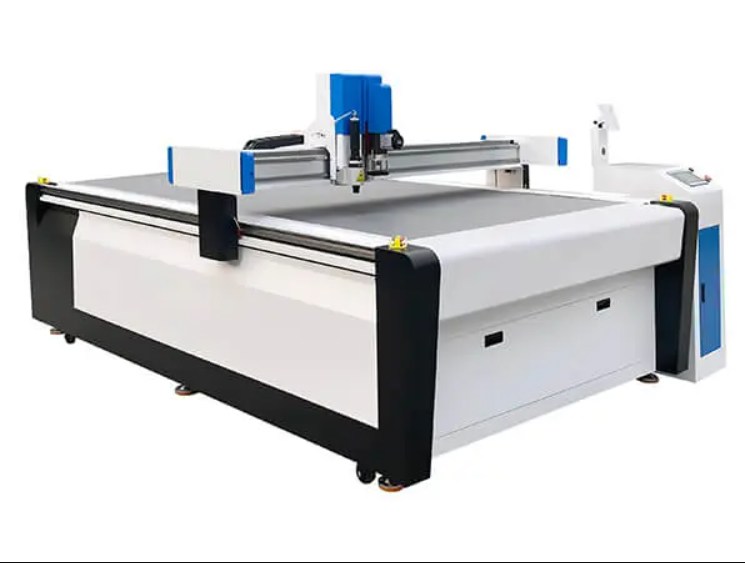

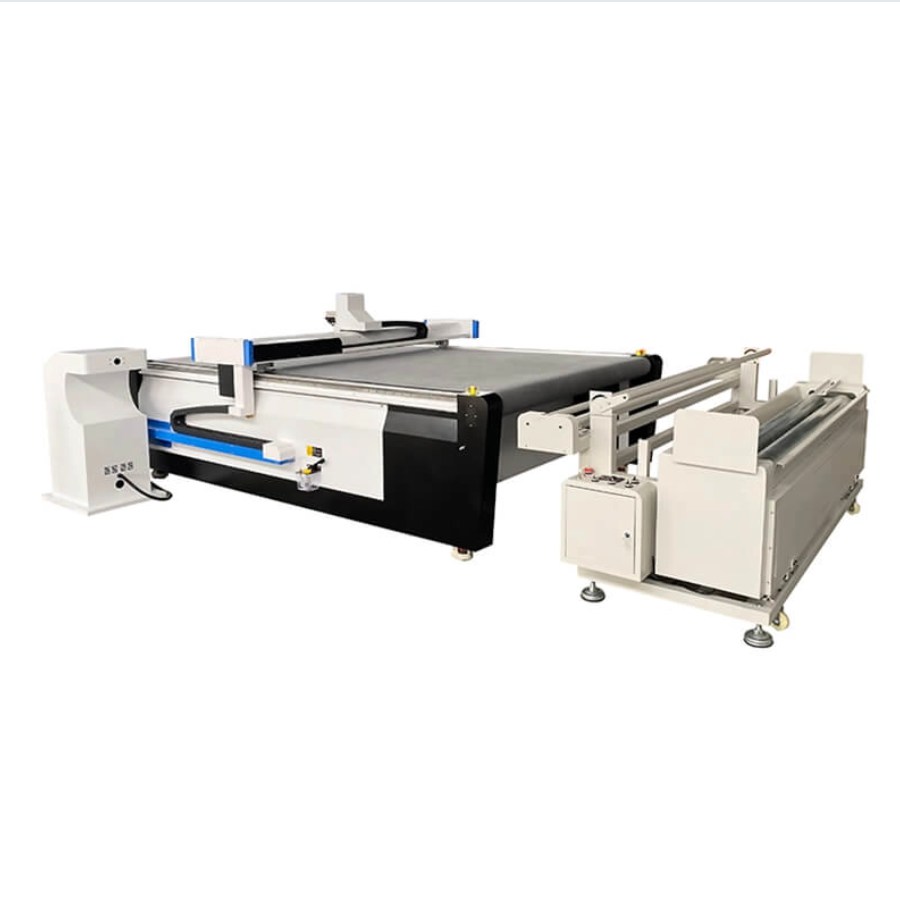

The fiberglass cutting machine is an intelligent cutting device. The cutting tool is a blade, which is environmentally friendly and pollution-free. The fiber glass cutter can cut composite materials such as glass fiber, carbon fiber, and prepreg.

1. Fiberglass Cutting Machine Description

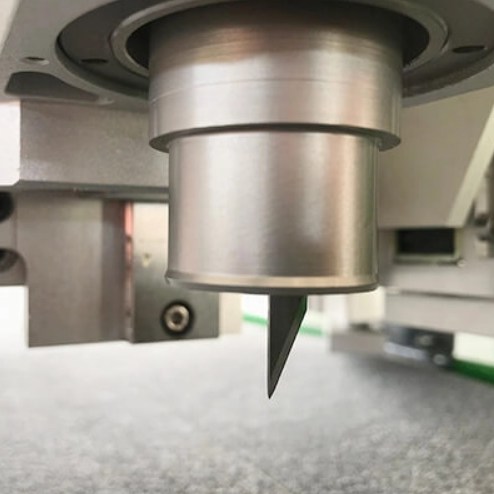

Knife Cutting Head

Carbon fibre cutting machine uses high frequency vibration knife cutting technology. Knife blades cut have no burn edge nor pollution gas.

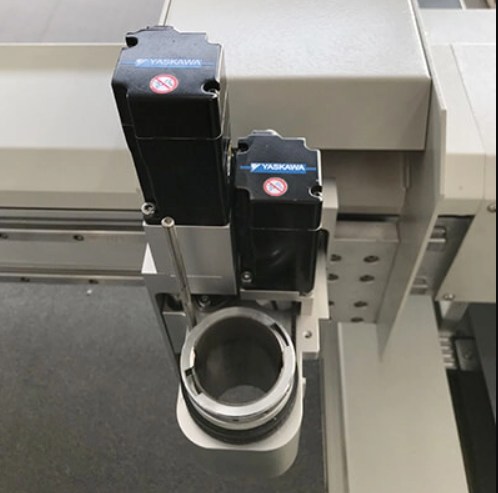

The fiberglass cutter machine uses Japan YASKAWA servo motors and drivers. Has high precision, high cutting speed, long lifetime.

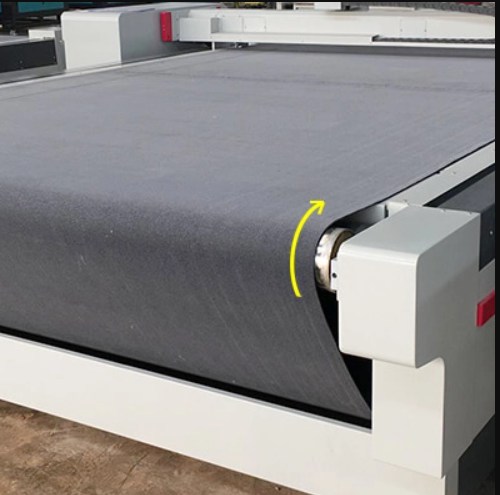

Auto Feeding Conveyor Table

Auto feeding table can pull and move material forward automatically. No need to move material manually. Saves time and labor costs.

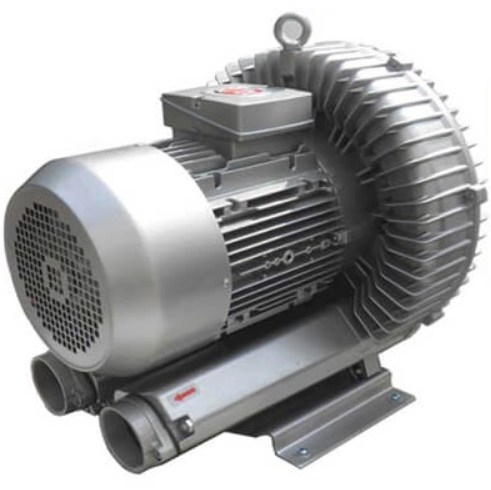

Vacuum Pump

The vacuum pump offer high power air pressure to fix the material firmly. Make sure the material won't move in the cutting process.

1. Fiberglass cutting machine cuts by knife blades, not by laser. So it won’t have a burned edge. And bad smell and no pollution gas.

2. Carbon fibre cutting machine uses Japan Yaskawa servo motors. Work with our system to ensure the good cutting quality.

3. The fiber glass cutter has an automatic nest system. The material use rate can be improved by 5%.

4. The flatbed table and auto conveyor table are optional. With an auto feeding system. It saves labor costs and work time.

5. Files in DXF and PLT formats are supported. And software which can export DXF or PLT files is workable with this fiberglass cutter machine.

6. Carbon fibre cutting machine is easy to learn. And free training is offered.

7. Fiberglass cutting machine can be equipped with multi tools to meet a variety of needs.

2. Fiber Glass Cutter Application

Application Material of Composite Material Cutting Machine

KT board, foamed PVC board, chevron board, corrugated paper, corrugated board, foam, sponge, EVA, XPE, PTFE, ETFE, TPU, PVC, PP paper, stickers, film, reflective material and etc.

Leather, PU, artificial leather, fabric and etc.

Carbon fiber, glass fiber, insulation cotton and etc.

Rubber, carpet, gasket, sound absorb panels, sound insulation cotton and etc.

 Application Industry of Fiberglass Cutting Machine

Seal industry, compound rubber industry, package industry, leather footwear industry, auto interior industry, garment industry, luggage industry, carpet industry, decoration industry and etc.
