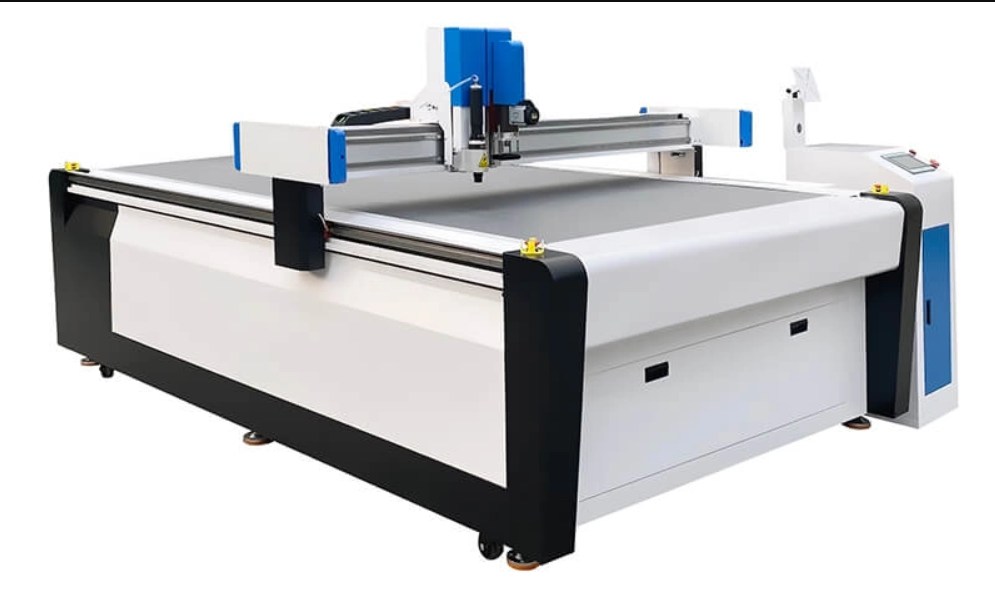

Honeycomb board cutting machine with creasing tool can cut packaging, carton box, display, standee and etc.

If the cardboard is heavy duty and thick, the paper box cutting machine has a v cut tool to cut grooves on cardboard.

To cut printed carton cardboard, the cardboard CNC cutter has a CCD camera to cut out the layout of the printing images on cardboard.

1. Cardboard CNC Cutter Description

1. Carton CNC cutting machine cuts cardboard with knife blades. No smoke and smell, more environmentally friendly.

2. Paper board cutting machine uses Japan imported servo motor and driver. Work speed is fast and precision is high.

3. Honeycomb board cutting machine Is easy to operate. An inexperienced worker can learn it within one day.

4. Cardboard CNC cutter is equipped with infrared security devices. It can effectively protect the safety of the operator.

5. Carton CNC cutting machine adopts computer control. it can avoid manual error of manual cutting and expect more accuracy.

6. Paper board cutting machine uses steel pipe welded machine body. The machine body is aging treated to ensure high precision.

2. Carton CNC Cutting Machine Functions

Honeycomb board cutting machine has a variety of tools to meet the requirements of the carton industry. The paper box cutting machine can realize the functions of cutting, creasing, cutting, positioning cutting, marking, and so on.

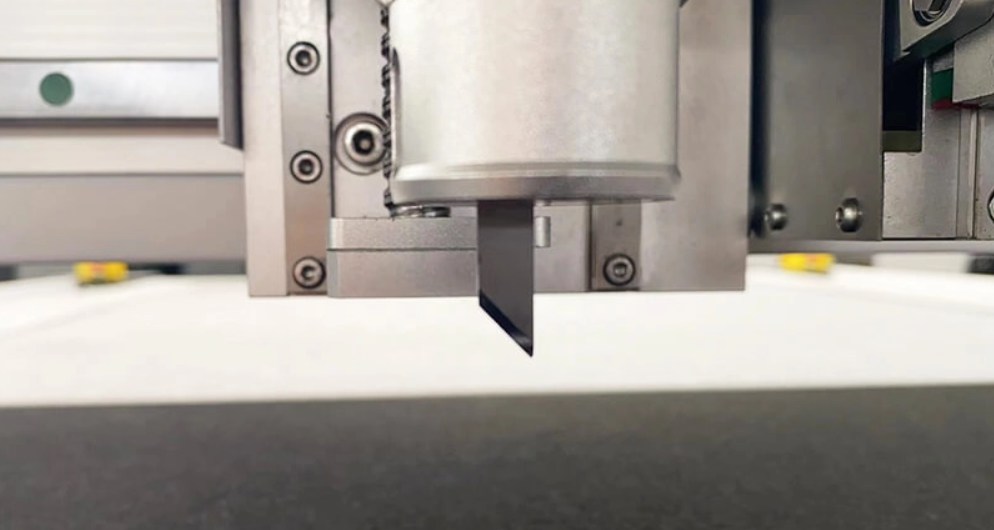

a. Cutting tool: cardboard CNC cutter can cut honeycomb cardboard, corrugated cardboard, paper board, gray cardboard, PP cardboard and etc.

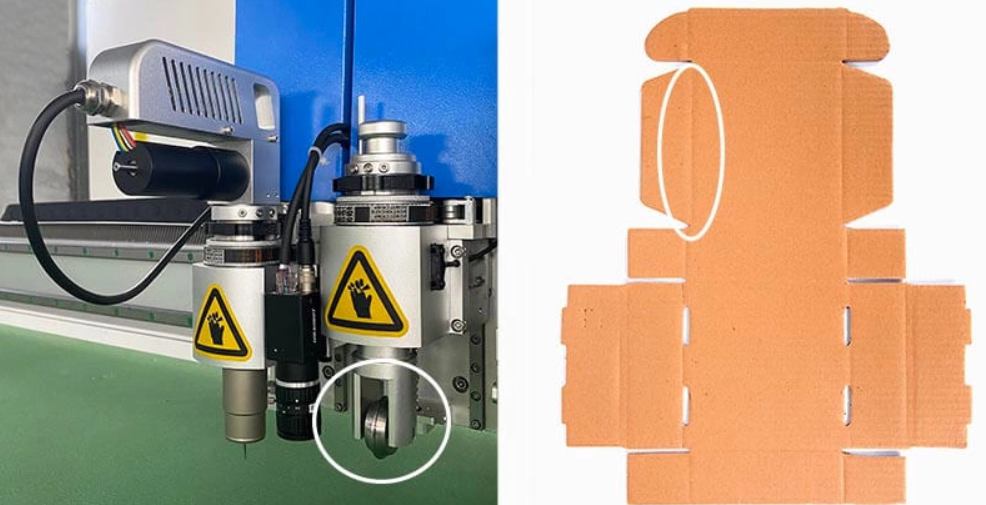

b. Creasing tool: The carton CNC cutting machine has a creasing tool to press folding lines on cardboard.

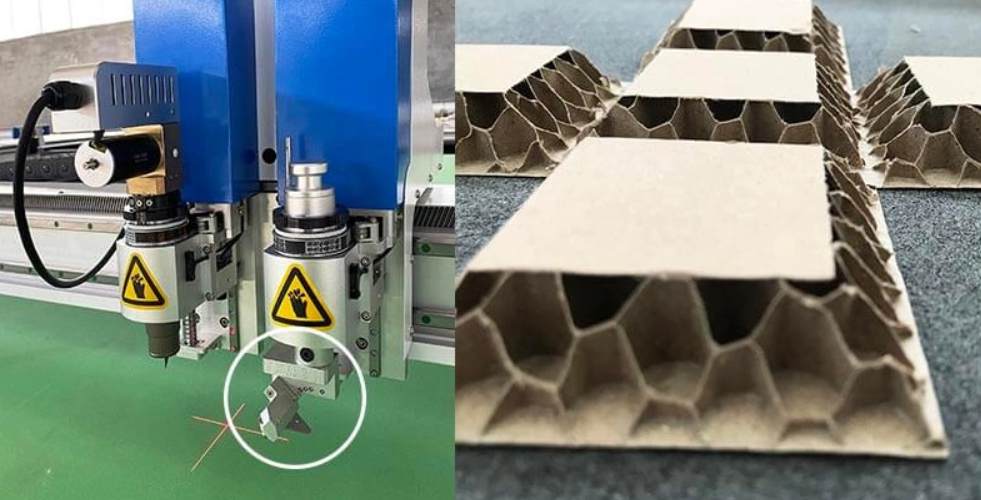

c. V-cut tool: paper board cutting machine has V cut tool to cut V grooves on thick cardboard.

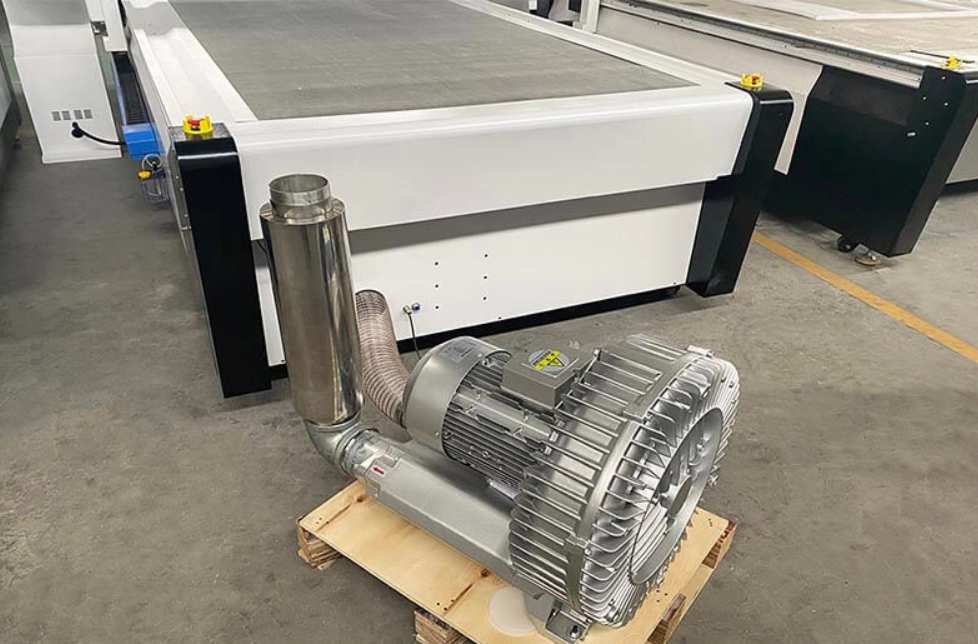

d. Material fix: honeycomb board cutting machine uses vacuum adsorption to fix the material. Automatic start of vacuum adsorption during cutting, smart and convenien

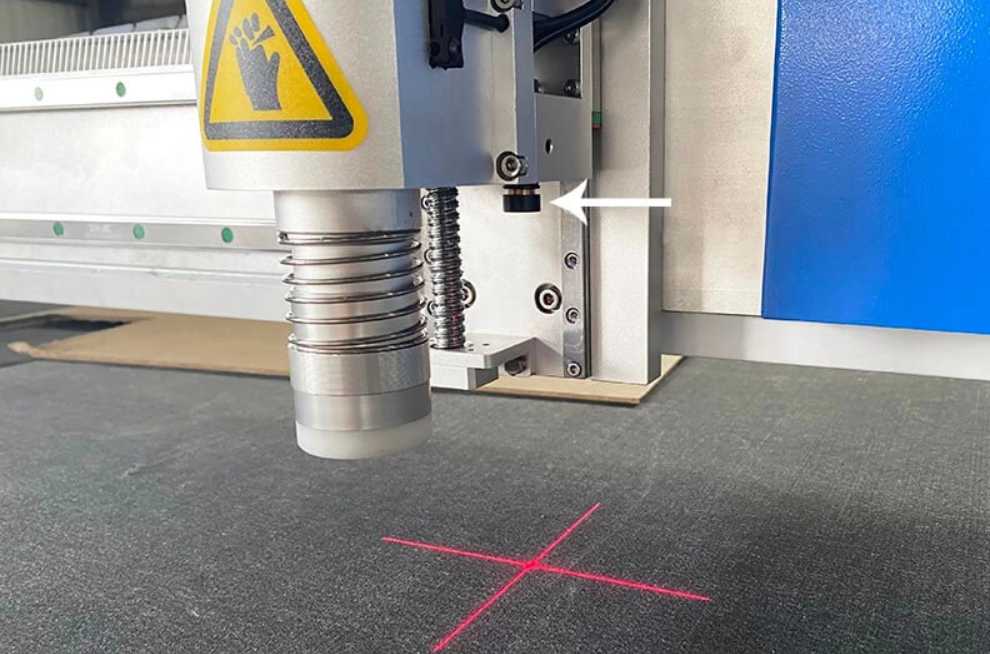

e. Red dot position: paper box cutting machine has red light indication for easy positioning.

3. Paper Box Cutting Machine Application

The honeycomb board cutting machine is an ideal solution for cutting and creasing different kinds of cardboard.

This is a multi function cutting machine with a variety of functions. cutting, creasing, V grooves cutting, marking, position cut and etc. carton cutting machine works without die. upload CAD files to the machine. Any shape and any design will become a product in a short time. The paper box cutting machine could meet sample making or small batch products of the packaging company.

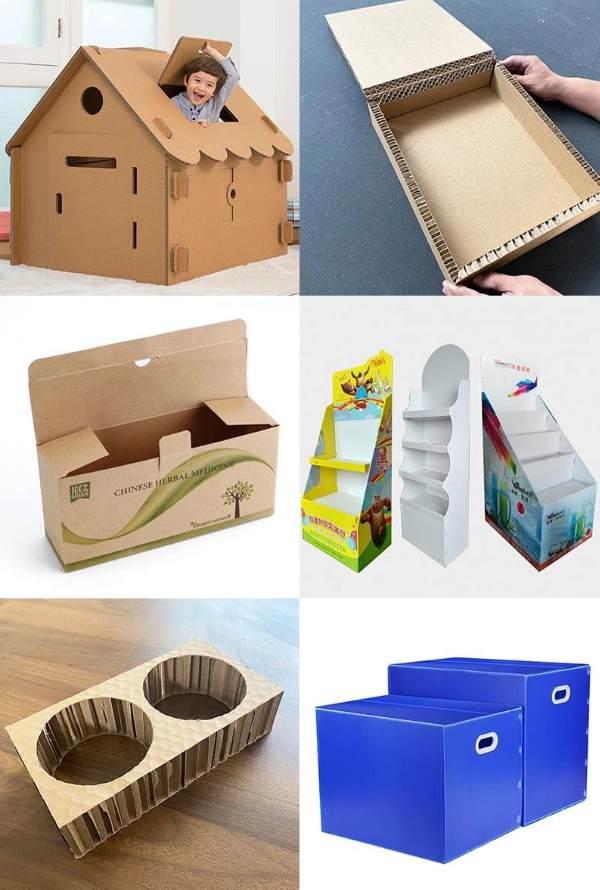

Cardboard CNC cutter can cut cardboard, corrugated board, chipboard, foam board, plastic board, leather, cloth, honeycomb board, KT board and etc. It is widely used in markets of package, print, die cutting, gasket, sign industries, leather, textile, foam, rubber, etc.
