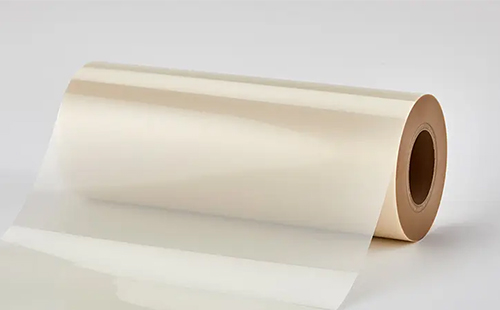

PPS diaphragm, namely polyphenylene sulfide diaphragm, is a high-performance porous functional membrane material. Featuring excellent high-temperature resistance, strong acid and alkali corrosion resistance, stable dimensional stability, flame retardancy and insulation properties, it serves as the core component of alkaline electrolyzed water hydrogen production electrolyzers, and is also widely applied in industrial filtration, electrochemical equipment, new energy energy storage and other high-end fields. The interior of the PPS diaphragm is covered with interconnected microporous structures. The cutting process strictly prohibits fiber shedding, micropore collapse, edge burrs and thermal shrinkage. Any burr defect or damaged micropore will directly affect the electrolytic isolation effect and operational safety of industrial equipment. Traditional cutting processes easily damage the porous structure of the diaphragm and cause product scrap. Adopting the CNC oscillating knife cold cutting machine with pure physical normal-temperature shearing technology solves all key difficulties in PPS diaphragm cutting, becoming the preferred automatic precision blanking equipment for new energy industry PPS diaphragms.
Core Pain Points of Traditional PPS Diaphragm Cutting Processes
The PPS diaphragm adopts a thin porous fiber structure with precise micropores, requiring extremely strict edge integrity after cutting. Traditional processing methods have always suffered from quality hazards, high scrap rates and poor production flexibility, which cannot meet high-standard new energy production requirements:
1. Manual Cutting: Severe Dimensional Error and Massive Fiber Shedding
New energy factories usually adopt manual blade cutting for small-batch PPS diaphragm sampling. The PPS fiber texture is brittle, and uncontrollable manual pressing and cutting force easily causes edge fiber drawing and shedding due to stretching during cutting. The fallen fiber debris mixed into the electrolyte will seriously affect the operational safety of the electrolyzer. Manual cutting relies entirely on worker experience, with low precision for processing special-shaped contours, arcs and holes. Batch cut pieces have inconsistent dimensions, and random manual typesetting causes serious waste of high-value diaphragm raw materials, completely unsuitable for large-scale standardized production.
2. Laser Cutting: Thermal Damage Causes Micropore Fusion and Functional Failure
Laser cutting is a typical thermal processing technology. The instantaneous high temperature melts and sinters the cutting edge of the PPS diaphragm, fusing and closing the original breathable and ion-permeable microporous structure, completely destroying the functional attributes of the diaphragm. Thermal action also leads to local thermal shrinkage and deformation, making the cutting edge hard and brittle and producing carbonized debris. Falling debris will pollute finished products. For high-safety-level components such as hydrogen production electrolyzer diaphragms, laser-cut products cannot be put into use at all. Meanwhile, laser processing generates harmful flue gas, bringing great environmental pressure to workshops.
3. Die Punching: High Pressure Collapses Micropores with High Renovation Costs
Die cutting relies on high-pressure stamping forming. The huge stamping pressure easily squeezes and collapses the surface microporous structure of the PPS diaphragm. Stretching during punching causes edge fiber fracture and burrs, as well as hidden microcracks. The cracks will expand during subsequent equipment operation, bringing major potential safety hazards. Developing new-specification and new-contour diaphragm components requires customized dies with long production cycles and high mold costs, resulting in high production costs for small-batch sampling orders. Worn dies will produce more cutting burrs after long-term use and require frequent maintenance and replacement, failing to adapt to the fast iteration production mode of the new energy industry.
Core Advantages of Oscillating Knife Cutting Machine for PPS Diaphragm Processing
Targeting the processing characteristics of PPS porous diaphragms — high temperature sensitivity, extrusion and stretching resistance, zero fiber shedding requirement and high precision standard, our equipment optimizes blade vibration frequency, cutting pressure control and vacuum adsorption system to realize stable and precise cutting for PPS fiber diaphragms of different thicknesses.
1. Normal-Temperature Physical Cold Cutting, Zero Thermal Damage, Complete Micropore Structure Preservation
Adopting high-frequency small-amplitude blade vibration pure physical cutting technology, the whole process operates at normal temperature without high-temperature sintering, micropore fusion or thermal shrinkage deformation. It completely retains the original microporous structure, acid and alkali resistance, high-temperature resistance and other material properties of PPS diaphragms. The cutting edge has no carbonized debris, eliminating finished product pollution risks. It fully meets the strict quality standards of electrolytic hydrogen production and precision filtration, with no smoke or waste gas generated during processing, ensuring a clean and environmentally friendly workshop production environment.
2. Low-Pressure Flexible Shearing, Zero Fiber Drawing and Shedding, No Secondary Cleaning
With vertical high-frequency flexible shearing logic and precisely controlled low cutting pressure, the machine smoothly cuts off PPS fibers without violently tearing the diaphragm substrate. It fundamentally avoids edge wire drawing, burrs and fiber shedding problems. The cutting edge is clean and compact without residual debris, eliminating manual secondary cleaning procedures, greatly improving finished product yield and avoiding equipment safety risks caused by falling fiber debris.
3. Zoned Vacuum Adsorption Fixation, Anti-Wrinkle and Anti-Slip, Stable Cutting Precision
Equipped with a professional zoned vacuum adsorption table, the machine firmly fixes ultra-thin lightweight PPS diaphragms, effectively suppressing material sliding and wrinkling deviation during cutting. Supported by an industrial servo CNC system, the cutting accuracy is stably controlled within ±0.1mm, ensuring consistent dimensions of all batch diaphragm cut pieces, improving the assembly matching degree of subsequent electrolyzers and reducing defective products caused by assembly misalignment.
4. Mold-Free Digital Cutting, Fast Processing for Multi-Specification and Special-Shaped Parts
The equipment supports mainstream drawing formats such as DXF, CAD and PLT, generating cutting paths with one-click file import without custom dies. It realizes one-time forming of squares, circles, rings, special-shaped contours and hole positions. New product sampling and style modification only require editing electronic drawings with extremely fast response speed, perfectly adapting to the dual production needs of small-batch sampling and mass production of multi-specification diaphragms in the hydrogen energy industry.
5. Intelligent Nesting, Reduces High-Value Diaphragm Material Loss
Built-in intelligent nesting and common-edge cutting functions automatically optimize the layout of cut pieces, effectively improving material utilization compared with manual empirical typesetting. Given the high raw material cost of PPS diaphragms, optimized nesting greatly reduces waste rate and directly cuts down the production cost of new energy factories.
6. Automatic Continuous Blanking, Reduces Labor Dependence
It supports continuous cutting of full-roll and full-sheet diaphragms, eliminating manual line drawing and template positioning work. A single device can replace multiple skilled cutting workers, greatly reducing labor costs. The equipment supports long-term stable mass production, solving the industry pain points of labor shortage and fluctuating production capacity in the new energy sector.
Customized Advantages of Our Source PPS Diaphragm Cutting Equipment
As a professional manufacturer deeply engaged in new energy diaphragm and high-performance fiber material cutting fields, we have specially optimized the equipment for the special physical properties of PPS porous diaphragms, which is different from ordinary universal cutting machines:
1. Exclusive PPS diaphragm cutting parameters: Preset professional vibration frequency, feeding speed and cutting pressure parameters to avoid micropore collapse for thin diaphragms and realize one-time complete cutting for thick fiber diaphragms, ensuring burr-free and intact cutting edges;
2. Low-negative-pressure adaptive adsorption: Optimized adsorption negative pressure for ultra-thin porous diaphragms, which firmly fixes materials without causing tensile deformation of diaphragms due to excessive negative pressure;
3. Multi-thickness compatibility: Adjustable blade stroke and pressure to adapt to multiple specifications including thin electrolytic diaphragms and thickened industrial filtration PPS diaphragms;
4. Complete after-sales service system: Provide free sample cutting verification for customers, on-site equipment installation and commissioning, one-on-one operator training, and lifelong free software upgrades to ensure stable operation of production lines.
Conclusion
The core difficulty of PPS diaphragm processing is protecting the internal microporous structure, eliminating fiber shedding, thermal damage and extrusion deformation, and ensuring the functional stability and operational safety of the diaphragm. Traditional manual, laser and die punching processes inevitably cause debris residue, micropore damage and thermal shrinkage with high scrap rates, failing to meet the high-standard production requirements of new energy hydrogen production and precision filtration.
With the advantages of normal-temperature zero thermal damage, flexible shearing zero fiber loss, complete micropore protection and mold-free flexible production, the CNC oscillating knife cold cutting machine solves all core pain points of PPS diaphragm cutting. It adapts to both large-batch standardized mass production and fast customized processing of multi-specification special-shaped diaphragms, making it the optimal automatic blanking equipment for PPS diaphragms and other high-performance porous functional materials.
